BT6308-Cond Online Conductivity Analyzer

BT6308-Cond Online Conductivity Analyzer

The Bebur BT6308-Cond Online Conductivity Analyzer has three different types of sensors: graphite, annular and stainless steel structures. Users can select the corresponding sensors according to different applications, which can meet the diverse needs of users.

Typical applications

Metallurgical beverages, pure water, fermentation, chlor-alkali, papermaking, beer, ultra-pure water, softened water, surface water, tap water, municipal sewage, industrial wastewater, biopharmaceuticals, petrochemicals, secondary water supply, tap water network, industrial process control

Graphite conductivity sensor

It is used in municipal water industry applications such as tap water. With an epoxy housing and graphite measuring electrode, it is corrosion-resistant and can be installed in either immersion or insertion type.

The sensor can be configured to meet your exact needs. Customers can choose different electrode constants, temperature sensors, cable lengths and connector types.

It has multiple application scenarios and can be installed in an immersive way, in a flow-through way, or connected to a portable controller to complete portable measurement.

Technical specifications

Annular inductive conductivity sensor

Anti-pollution, anti-corrosion and anti-scaling

Noryl material, durable

Special three-way connectors for online use of sensors

The measurement range of the annular inductive conductivity sensor is 0- 2,000,000 uS/cm. The material of the sensor is modified polyphenylene ether (Noryl), which has a wide solvent tolerance, enabling the sensor to maintain stable measurement even at a high temperature of 105℃. The sensor is equipped with a built-in temperature sensor that can automatically compensate for the temperature.

Technical specifications

Stainless steel conductivity sensor

High-performance sensors designed for high-temperature applications.

K=0.1,1.0 and over ten electrode constants.

The maximum supported temperature can reach up to 200℃.

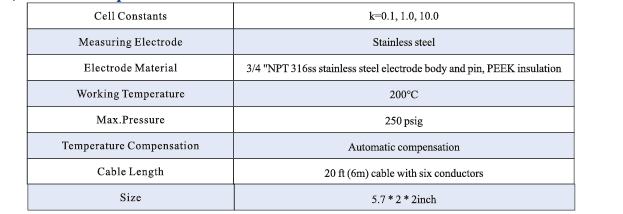

Technical specifications

Ordering Guide

When making a purchase, please inform us of the field or industry you are using and the characteristics of the medium to be measured, so that we can provide appropriate technical service guidance.

The standard supply contents of Bebur's Online Conductivity Analyzer include:
