Liquid Particle Counter
Bebur liquid particle counters use the light obscuration principle to continuously monitor the size, quantity and changes of particles in water, oil and process liquids — online 24 hours a day or portable for laboratory and field use, with up to 32 user-configurable size channels.
What Is a Liquid Particle Counter?
A liquid particle counter is an instrument that measures the size and quantity of solid particles suspended in a liquid. The Bebur BT8500 Particle Sense liquid particle counter uses the light obscuration principle to continuously monitor particle size, count and changes in water online for 24 hours, while the BTP8300 Portable Liquid Particle Counter brings the same measurement principle to laboratory and field testing.
The instruments are reliable in performance and easy to use, with multiple particle size detection channels to meet diverse monitoring needs — from drinking water treatment and membrane filtration to fluid cleanliness in liquid cooling systems and contamination control of hydraulic and lubricating oils.
Counts are reported per milliliter or as totals per measurement cycle, in cumulative mode (particles larger than a channel size) or grouping mode (particles between adjacent channels), giving operators a clear, real-time picture of liquid cleanliness.
How Does a Liquid Particle Counter Work?
Sample flows through the cell. The liquid sample is drawn through a precision flow cell between a laser diode light source and a detector.
Particles block the beam. As particles in the liquid pass through the laser sensor, they interrupt the light beam and cast a shadow on the detector.
Signal reduction is measured. The light signal received by the detector decreases; this reduction is directly proportional to the equivalent size of each particle.
Size and count are calculated. The sensor calculates particle size and quantity from the amount of beam loss and the number of beam breaks, then reports results across the configured size channels.
Online and Portable Models
BT8500 Online Liquid Particle Counter
Online liquid particle counter for continuous 24-hour monitoring of particle size, quantity and changes in water. External sensor for easy cleaning, integrated or split installation.
- Size ranges1–200 / 2–400 / 2–750 μm
- Channels8 standard (16/24/32 optional)
- Display7″ color touchscreen
- OutputModbus RTU RS485, USB, 4–20 mA
- EnclosureNEMA 4X
BTP8300 Portable Liquid Particle Counter
Portable liquid particle counter for oil contamination, flocculation optimization, water injection and water quality testing — fast detection, strong anti-interference, high precision and good repeatability.
- Size ranges1–400 μm (2–750 μm custom)
- Channels8 / 32 (up to 1000 custom)
- Test time≤ 2 minutes
- PrinterBuilt-in, with data plotting
- Weight2.5 kg (without battery)
Key Features
Light Obscuration Sensing
Laser sensor with 5 mW red laser diode and signal-to-noise ratio of 3:1 or better for accurate, repeatable particle sizing and counting.
Up to 32 Size Channels
Standard 8 user-configurable particle size channels, with 16, 24 and 32 channels optional — and up to 1000 channels on the portable model.
On-Site Calibration
Built-in calibration function allows high-precision field calibration without returning the instrument to the factory, saving time and cost.
Real-Time Alarms
Real-time sensor alarms, fault display and maintenance prompts keep operators informed of instrument status at all times.
Flexible Data Output
Modbus (RTU) RS485, USB and optional 4–20 mA outputs meet various data transmission and system integration needs.
Optional Water Quality Sensors
The online model can be equipped with optional pH and conductivity sensors and a bubble removal device for demanding conditions.
Typical Applications
Bebur liquid particle counters serve industrial process water monitoring, parts cleaning, drinking water treatment, equipment anti-wear protection, fluid cleanliness monitoring and membrane filtration, as well as oil contamination testing for hydraulic, lubricating and insulating oils.
Municipal Water Treatment
Particle counting in drinking water treatment and membrane filtration monitoring.
Liquid Cooling Industry
Fluid cleanliness monitoring of coolants for data center liquid cooling systems.
Electric Power Industry
Transformer oil and turbine oil contamination monitoring in power plants.
Hydraulic Industry
Hydraulic oil cleanliness testing for equipment anti-wear protection.
Medical & Pharmaceutical
Monitoring of water used for medical products and preparations.
Customer Cases
Bebur liquid particle counters and cleanliness monitoring solutions are deployed by industry leaders in data center liquid cooling, thermal management and electronics manufacturing.

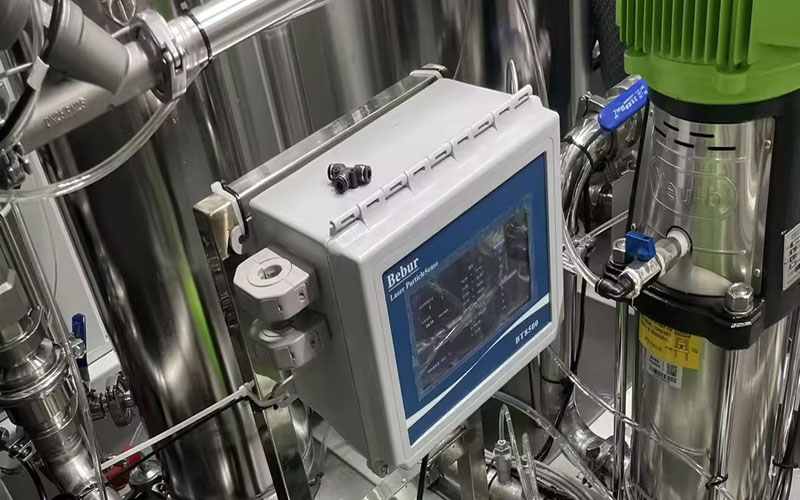

CDU Coolant Monitoring for a Leading Taiwanese Power Supply Manufacturer
Coolant quality in CDU units had to be monitored in real time, but low-concentration particles were hard to capture and the water quality conditions were complex.
BT8500 online particle counter with 8 size channels, external easy-clean sensor, 7-inch color touchscreen, built-in calibration and Modbus RTU RS485 output.
Precise capture of low-concentration particles in coolant, providing 24/7 automated water quality protection for data center liquid cooling.

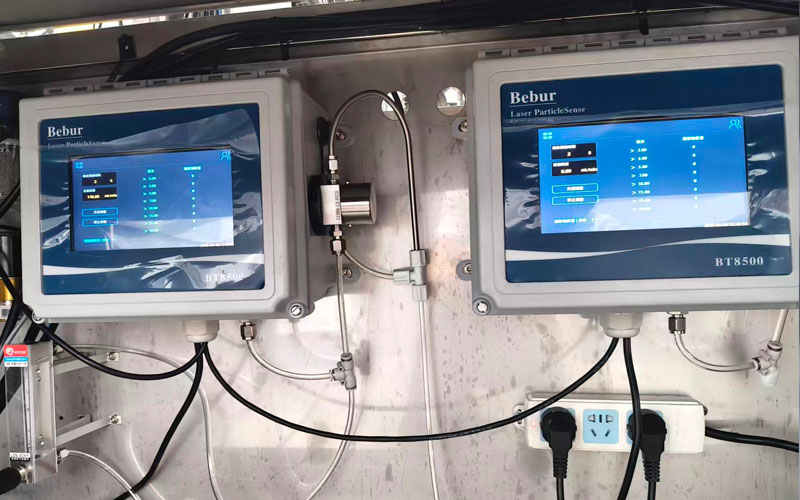

Cleanliness Verification for a Renowned Thermal Solution Provider
Cleanliness testing of liquid cooling products demanded high accuracy, high efficiency and strong anti-interference capability.
BT8500 online particle counter with 7 size channels, featuring fast detection, strong anti-interference, high precision, good repeatability and ISO cleanliness code display.
Reliable particle data supporting product quality control, performance verification and design optimization.
One-Stop Water Quality Control for a Leading Liquid Cooling Company
Both coolant and cooling water need to undergo quality control, and the parameters covered are not limited to cleanliness; they also include pH and conductivity.
Customized multi-parameter online water quality monitoring solution covering both coolant and cooling water quality.
A one-stop solution fulfilling the multi-parameter water quality control requirements of liquid cooling systems.
Technical Specifications
| Parameter | BT8500 (Online) | BTP8300 (Portable) |
|---|---|---|
| Measurement principle | Light obscuration, laser sensor | Light (photometric) obscuration |
| Monitoring mode | Online, continuous 24-hour | Portable, laboratory & field |
| Measurement range | 1–200 / 2–400 / 2–750 μm | 1–400 μm standard; 2–750 μm customized |
| Size channels | 8 standard; 16 / 24 / 32 optional | 8 / 32 selectable; up to 1000 customized |
| Size reporting range | 2–300 μm (custom on request) | Per channel configuration |
| Flow rate | 60 mL/min (1–200, 2–400 μm); 120 mL/min (2–750 μm) | 10–50 mL/min, user-settable |
| Test time | Continuous measurement | ≤ 2 minutes |
| Coincidence error limit | — | 10,000 particles/mL |
| Measurement precision | < 8% (> 10 μm); < 10% (2–10 μm) | < ±5% (2 μm); < ±10% (5–10 μm) |
| Counting modes | Cumulative & grouping modes | Per channel distribution |
| Display | 7″ high-resolution color touchscreen | Color display + built-in printer |
| Data output | Modbus (RTU) RS485 standard; USB; 4–20 mA optional | USB & I/O ports, data download and copy |
| Data storage | Yes (1,000,000 records) | Yes |
| Calibration | Built-in field calibration | Manual / automatic on-site calibration |
| Power supply | 100–240 VAC, 50–60 Hz (24 V optional) | 110–240 VAC or battery |
| Enclosure | NEMA 4X | Portable protective case |
| Dimensions | 12″ W × 10″ H × 6″ D | 30.5 × 25 × 15 cm |
| Weight | 5 kg | 2.5 kg (without battery pack) |
| Installation | Overflow weir or flowmeter installation | Benchtop / field deployment |
| Options | pH, conductivity sensors; bubble removal device | Sensor cleaning kit; calibration work kit |
Frequently Asked Questions About Liquid Particle Counters
What is a liquid particle counter?
A liquid particle counter is an instrument that measures the size and quantity of solid particles suspended in a liquid. Bebur liquid particle counters use the light obscuration principle to continuously monitor particles in water, oil and process liquids, supporting quality control in drinking water treatment, liquid cooling, membrane filtration, oil contamination monitoring and industrial processes.
How does a liquid particle counter work?
The liquid particle counter works on the light obscuration (light blockage) principle. When particles in the sample pass between the laser diode light source and the detector inside the flow cell, they block the light beam. The sensor calculates the size and quantity of the particles from the amount of beam loss and the number of beam breaks, because the signal reduction is directly proportional to the equivalent particle size.
What is the difference between the BT8500 and BTP8300 liquid particle counters?
The BT8500 is an online liquid particle counter designed for continuous 24-hour monitoring with an external sensor, a 7-inch color touchscreen and Modbus RS485 output. The BTP8300 is a Portable Liquid Particle Counter for laboratory and field use, weighing 2.5 kg, with battery or AC power, a built-in printer and a test time of two minutes or less. Both use the light obscuration principle.
How many particle size channels can a liquid particle counter measure?
Bebur liquid particle counters offer a standard of 8 particle size detection channels that users can set themselves, with 16, 24 and 32 channels available as options. The BTP8300 portable model can be customized with up to 1000 channels.
Can the liquid particle counter be calibrated on site?
Yes. Both the BT8500 and BTP8300 have built-in calibration functions that allow high-precision on-site field calibration without returning the instrument to the factory, saving time and cost.
What liquids can be tested with a liquid particle counter?
The instruments test particles in drinking water, industrial process water, medical product water and liquid cooling fluids, as well as oils such as aviation kerosene, hydraulic oil, lubricating oil, transformer oil, turbine oil, gear oil and engine oil. They also detect insoluble particles in organic liquids and polymer solutions.
Need Help Choosing a Liquid Particle Counter?
Tell us your application and the liquid you need to test — Bebur engineers will recommend the right model, size range and channel configuration.
