Why pH Monitoring Matters in Liquid Cooling
The pH value reflects the acidity or alkalinity of a coolant. Once it drifts out of balance, a chain of problems follows: coolant that is too acidic corrodes pipelines, server components and other metal parts, causing equipment damage and leakage risks. In a data center liquid cooling loop, that can mean anything from degraded cold plates to a full rack outage.

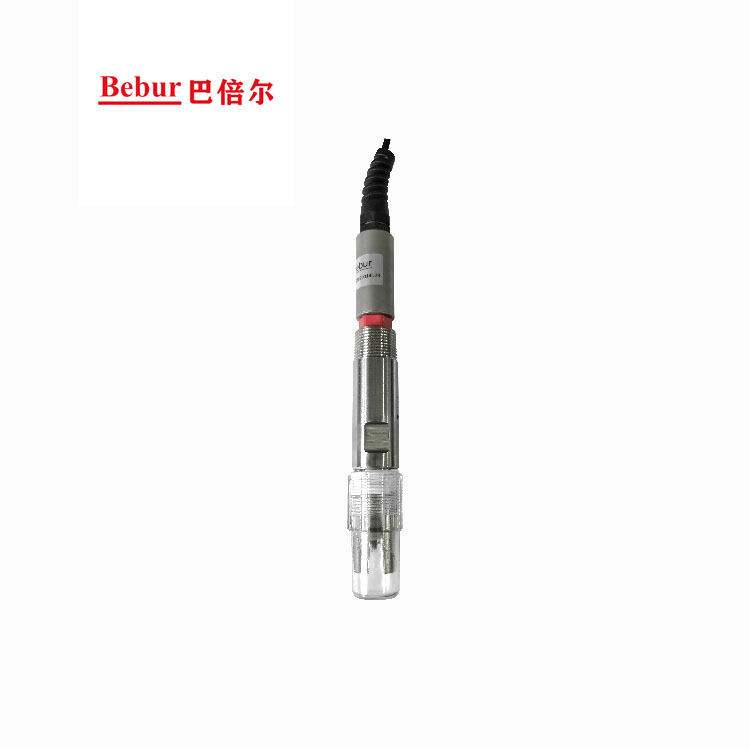

The BS-PHS276 Liquid-Cooled pH Sensor uses a low-impedance sensitive glass membrane with a high-precision signal processing chip to measure pH accurately and capture subtle changes in coolant chemistry. Whether the environment is acidic or alkaline, it delivers stable data that operations teams can rely on for coolant health assessment and early corrosion warning.
Product Overview
BS-PHS276 at a Glance
- Measuring Range0–14 pH
- Accuracy±0.02
- Slope95%–105% (25 °C)
- T90 Response≤ 20 seconds
- Suitable MediaPure water, DI water, PG25/EG25
- Temp. CompensationPT1000, automatic
- OutputRS485 / 4-20mA, Modbus RTU
- Process Connection3/4 NPT
Key Features
Low-Impedance Glass Membrane
Sensitive special-glass membrane captures slight pH changes in the coolant with high accuracy.
Automatic Temperature Compensation
Built-in PT1000 compensates pH readings across the full 0–80 °C temperature range.
Alkaline-Environment Ready
Resistant to hydrolysis, suitable for alkaline as well as acidic coolant environments.
Signal Isolation & Anti-Interference
Internal signal isolation ensures reliable performance in complex electromagnetic environments.
Wide Voltage Supply
9–36 VDC wide-range power input simplifies integration into existing control panels.
Low Drift, Fast Response
Compact design with low drift and T90 ≤ 20 s response for real-time coolant monitoring.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | BS-PHS276 |
| Suitable Media | Pure water, deionized water, PG25/EG25 |
| Measuring Range | 0–14 pH |
| Temperature Range | 0–80 °C |
| Pressure Resistance | 0–0.6 MPa |
| Slope | 95%–105% (25 °C) |
| Accuracy | ±0.02 |
| T90 Response Time | ≤ 20 s |
| Sensitive Membrane | Special glass |
| Body Material | 316L stainless steel |
| Temperature Compensation | PT1000 |
| Process Connection | 3/4 NPT |
| Power Supply | 9–36 VDC |
| Output | RS485 / 4-20mA |
| Communication Protocol | Modbus RTU |
| Dimensions | Φ28 × 148 mm (stainless steel body) |
| Cable | 5 m 4-core cable (standard) |
Dimensions & Installation

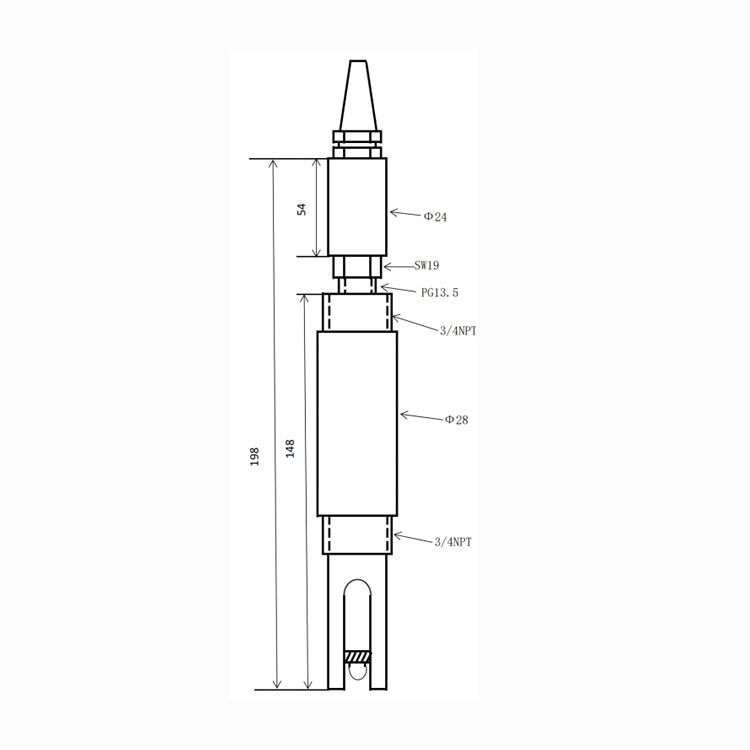

The sensor body measures Φ28 × 148 mm with a 198 mm overall length. Both ends carry 3/4 NPT threads, with a PG13.5 cable gland and SW19 hex on the upper assembly.
Two mounting versions are available when ordering:
- BS-PHS276-A — insertion mounting
- BS-PHS276-B — flow-through mounting
Remove the protective cap from the electrode before commissioning.
pH Scale Reference
| pH Value | Description | pH Value | Description |
|---|---|---|---|
| < 4.5 | Strongly acidic | 7.5 – 8.5 | Slightly alkaline |
| 4.5 – 5.5 | Acidic | 8.5 – 9.5 | Alkaline |
| 5.5 – 6.5 | Slightly acidic | > 9.5 | Strongly alkaline |
| 6.5 – 7.5 | Neutral | — | — |
Electrode Maintenance
- Inorganic contamination: clean with 0.1 mol/L HCl or NaOH solution for a few minutes, then rinse with distilled water.
- Organic contamination: clean with alcohol or acetone, then rinse with distilled water.
- Routine care: clean and calibrate the sensor every 6 months, adjusted to actual working conditions.
Typical Applications
- Data center liquid cooling — cold plate and immersion cooling loops, CDU primary/secondary side coolant monitoring
- Energy storage systems — liquid-cooled battery pack coolant health monitoring
- High-power electronics — cooling water quality for power electronics and industrial drives
The BS-PHS276 works alongside the BS-EC350 Liquid-Cooled Conductivity Sensor, turbidity sensors and the BT8500 Liquid Particle Instrument to form a complete coolant cleanliness monitoring package, all connectable to multi-parameter controllers via RS485 Modbus RTU.
Frequently Asked Questions
What is the BS-PHS276 Liquid-Cooled pH Sensor used for?
What media is the BS-PHS276 pH sensor compatible with?
What output signals does the BS-PHS276 provide?
What installation options are available for the BS-PHS276?
How should the BS-PHS276 pH electrode be maintained?
Related Products
- pH Water Quality Analyzer
- BS-EC350 Liquid-Cooled Conductivity Sensor
- BT8500 Liquid Particle Counter
- BT-6308 Multi-parameter Controller
Reliable pH Monitoring for Liquid Cooling
pH imbalance is one of the earliest indicators of coolant degradation — and one of the cheapest to monitor continuously. With ±0.02 accuracy, automatic PT1000 temperature compensation and Modbus RTU output, the BS-PHS276 gives liquid cooling operators a dependable, integration-ready pH measurement point.
